PS-6000 Low Frequency 6000 Watt Pure Sine Wave Power Inverter Charger 48Vdc to 230Vac

Product Description

TYPE:PS-6000W

6000 Watt continuous pure sine power

18000 watt peak power

Built in smart battery charger with 7 selectable battery type settings

Auto gen start feature. Smart charger 50Amp

Marine and industrial grade

Multiple protection functions

The 6000 watt 48 volt low frequency pure sine inverter charger is three products in one, a combination of an inverter, battery charger and AC auto-transfer switch. Use this product for renewable solar, off-grid home and business back up power, mobile and emergency backup power applications anywhere.

· The inverter transforms DC (direct current) power stored by batteries into AC (alternating current) electricity that can be used to power tools and appliances of all varieties.

· A built-in 50 amp transfer switch allows the product to automatically switch from using a battery bank to shore power. This is great in the event of a power outage, as the product will automatically detect the outage and redirect power from your backup battery bank.

· It also has a built-in 50 amp battery charger which uses AC power, from the grid or from a fuel-powered generator for example, that can be used to recharge a battery bank as well. The battery-type selector on the top of the unit allows the ability to adjust the voltage provided to the bank.

· The built in battery charger features a seven type battery selector and 4 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses 220 or 230 volts of alternating current.

Features

6000 watt low frequency inverter

18000 watt surge 300% surge capability

DC input and Ac output totally isolated design

High efficiency 88%--90%

Inverter power saving mode

AC/Battery Priority Selector

Terminal Block

Multi Stage Smart charger 50 Amp

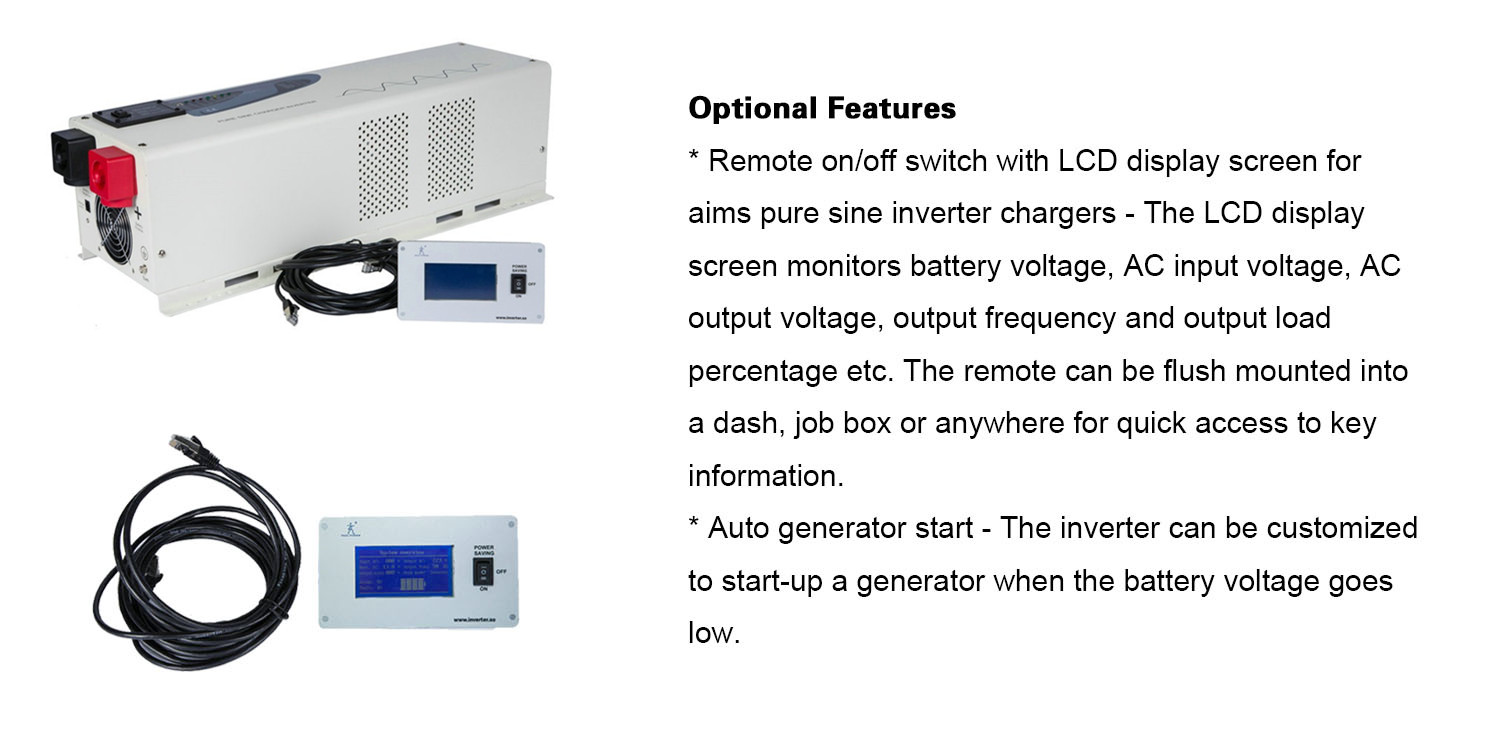

Remote LED display panel and the RJ11 standard interface available
8 msec typical transfer time
optional 25W power save mode (hibernation)
7 battery type settings for charger

Containing 4-step charging modes, charging current automatic adjustment

Multiple protection functions: over voltage, low voltage, over-current, overload, output short circuit protection etc.

Specifications

Inverter Output Specifications:

Continuous Output Power: 6000 Watts

Surge Rating: 18000 Watts

Output Waveform: Pure Sine/Same as input (Bypass Mode)

Output voltage:230VAC±3%)

AC Input voltage range: 190~245VAC

Power factor:   0.1~1

Nominal Efficiency: >88% (Peak)

Line Mode Efficiency: >95%

Output Frequency: 50Hz +/- 0.5Hz / 60Hz +/- 0.5Hz

Typical Transfer Time: 8ms (Max)

THD: < 5%

Ambient operating temperature: -4°F to 122°F (-20°C to 50°C)

Input Specifications

Nominal Input Voltage: 48.0Vdc

Minimum Start Voltage: 40.0Vdc

Low Battery Alarm: 41.0±1.2VDC

Low Battery shutoff: 40.0±1.2VDC

Low battery Trip: 40.0Vdc-42.0Vdc

High Voltage Alarm and Shutoff: 64.0±1.2VDC

Power Saver Mode Idle Consumption: 10.0 watts

Charger Specifications

Output voltage: Depends on battery Type

Charger Rate:50A

Over Charge Protection Shutdown 64V

Selectable Charge setting based on battery type

Adjustable charge current off--40%/60%/80%/100%

Four Stage Smart Charger

Dimensions

Unit Weight: 97.14 lbs.(44kgs)

Unit Size L x W x H: 26.38 x 8.67 x 7.10 inches (67x22x18cm)

Shipping Weight:105.97 lbs.(48kgs)

Shipping L x W x H : 30.32 x 13.39 x 12.99 inches (77*34*33cm)
