Product description:
TYPE:PS-5000W
5000 Watt continuous pure sine power
15000 watt peak power
Built in smart battery charger with 7 selectable battery type settings
Auto gen start feature.
Smart charger 35Amp
Marine and industrial grade
The 5000 watt 48 volt low frequency Power inverter charger transforms DC (direct current) power, stored by batteries, into AC (alternating current) electricity that can be used to run your various tools and appliances. This inverter also has a built in AC-to-DC battery converter charger, which allows users to recharge their battery bank from an AC source such as a fuel-powered generator, shore power or a regular outlet at home. The built in battery charger features a seven type battery selector and 4 stage charging, for safely and effectively charging your battery source. Use this product for renewable solar, off-grid, mobile and emergency backup power applications anywhere that uses 110 or 120 volts of alternating current.
Overview:
The 5000 watt power inverter charger with pure sine wave output is a combination of 48 volt power inverter, 35 amp battery charger and AC auto-transfer switch with a peak efficiency of 88%.
The AC hard wire terminal block will output a continuous power of 5000 watts at 120 volts AC, and also a 300 percent surge capacity of 15,000 watt. This 15KW surges runs many inductive tools and appliances easier with high startup surges, like electric chainsaws, portable grinders, refrigerators, freezers, microwaves and blow dryers.
The 5000 Watt power inverter accepts 48 volts DC input, which is great for travel trailer, vehicle upfitting, semi, RV and boat applications with a 48 volt battery system.
The inverter powers any type of loads, including Portable Induction Cooktop, microwave oven, electronic equipments.
The automatic transfer switch on this any power combi inverter is great for emergency backup power applications, the switch keeps the power supply uninterrupted in the event of power outages. When the inverter charger is connected to shore power, once the loss of input AC electricity is detected, it will start pulling energy from battery bank within 10 miliseconds to keep the power supply constant.
The AC/battery priority and auto generator start functionality make it suitable to work in either backup power or renewable energy applications. When set to battery priority mode, the any power combi inverter will extract maximum power from external sources and renewable energy systems, with only minimal battery cycles being required, this greatly prolongs battery lifespan.
In AC priority mode, when utility AC power cuts off, the load is automatically transferred to the inverter output. Once the qualified AC power is regained, the load is automatically transferred to AC power.
With auto generator start, the inverter is also able to command the backup generator to start when the battery voltage goes low.
Other common applications for this inverter consist of off-grid cabins, mobile business or mobile office, and running camping equipments.
This 5000 watt power inverter also has an optional LCD remote port, allowing you to turn the product on and off and monitor the operational status from a distance.
Product Features for PS-5000
5000 watt low frequency inverter
15000 watt surge 300% surge capability
DC input and Ac output totally isolated design
High efficiency 88%--90%
Inverter power saving mode
AC/Battery Priority Selector
AC direct connect terminal block
Multi Stage Smart charger 35 Amp
Remote LED display panel and the RJ11 standard interface available
8 msec typical transfer time
Optional 25W power save mode (hibernation)
7 battery type settings for charger
Containing 4-step charging modes, charging current automatic adjustment

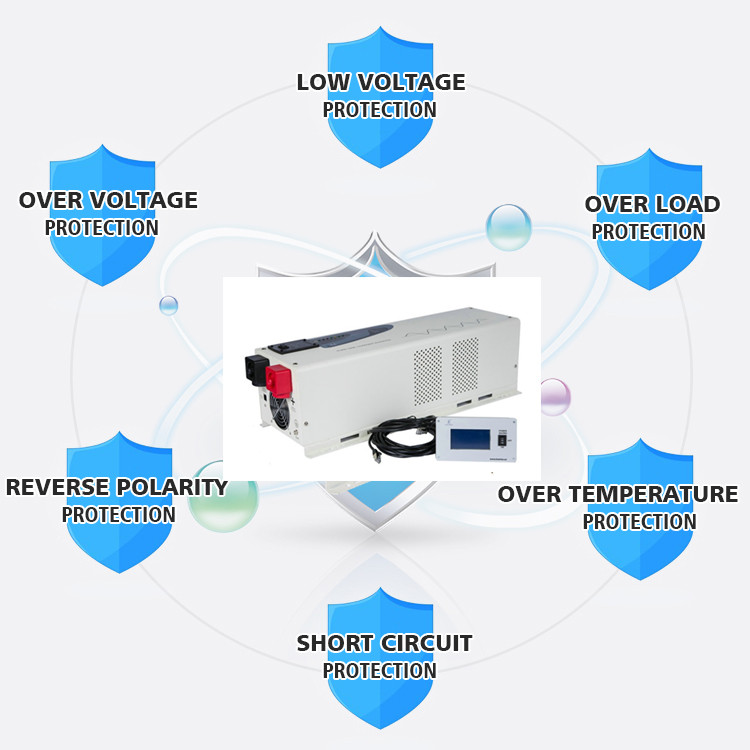

Multiple protection functions: over voltage, low voltage, over-current, overload, output short circuit protection etc
Specifications
Inverter Output Specifications:
Continuous Output Power: 5000 Watts
Surge Rating: 15000 Watts
Output Waveform: Pure Sine/Same as input (Bypass Mode)
Output voltage:120VAC±5%
AC Input voltage range: 90~135VAC
Power factor: 0.1~1
Nominal Efficiency: >88% (Peak)
Line Mode Efficiency: >95%
Output Frequency: 50Hz +/- 0.5Hz / 60Hz +/- 0.5Hz
Typical Transfer Time: 8ms (Max)
THD: < 5%
Ambient operating temperature: -4°F to 122°F (-20°C to 50°C)
Input Specifications
Nominal Input Voltage: 48.0Vdc
Minimum Start Voltage: 40.0Vdc
Low Battery Alarm: 41.0±1.2VDC
Low Battery shutoff: 40.0±1.2VDC
Low battery Trip: 40.0Vdc-42.0Vdc
High Voltage Alarm and Shutoff: 64.0±1.2VDC
Power Saver Mode Idle Consumption: 10.0 watts
Charger Specifications
Output voltage: Depends on battery Type
Charger Rate:35A
Over Charge Protection Shutdown 64V
Selectable Charge setting based on battery type
Adjustable charge current off--40%/60%/80%/100%
Four Stage Smart Charger
Dimensions
Unit Weight: 97.14 lbs.(44kgs)
Unit Size L x W x H: 26.38 x 8.67 x 7.10 inches (67x22x18cm)
Shipping Weight:105.97 lbs.(48kgs)
Shipping L x W x H : 30.32 x 13.39 x 12.99 inches (77*34*33cm)
Applications
The 5000 watt pure sine inverter charger can be used on all kinds of home appliances, office equipment,
solar power systems, RV, Motorhome, and other equipment which uses single phase off-grid tie power.
