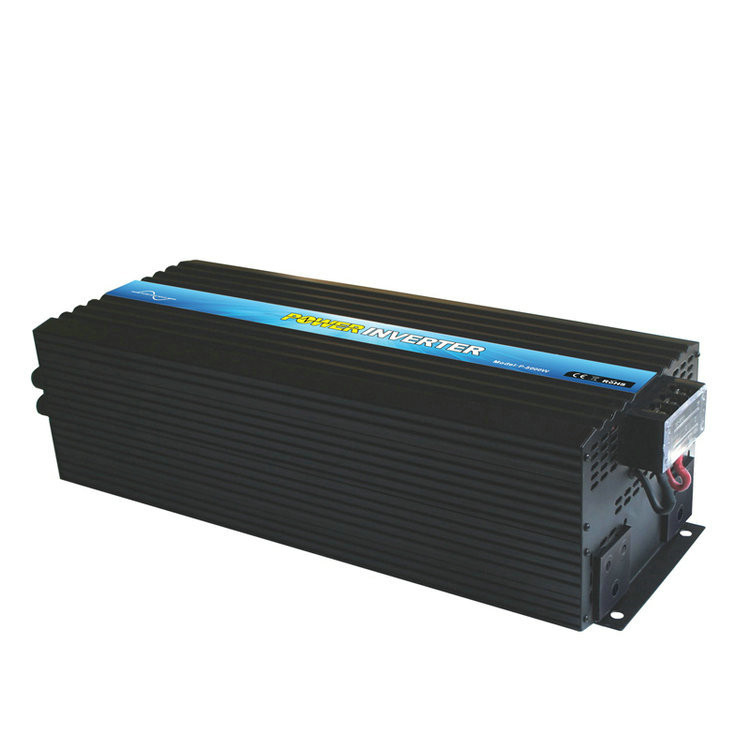

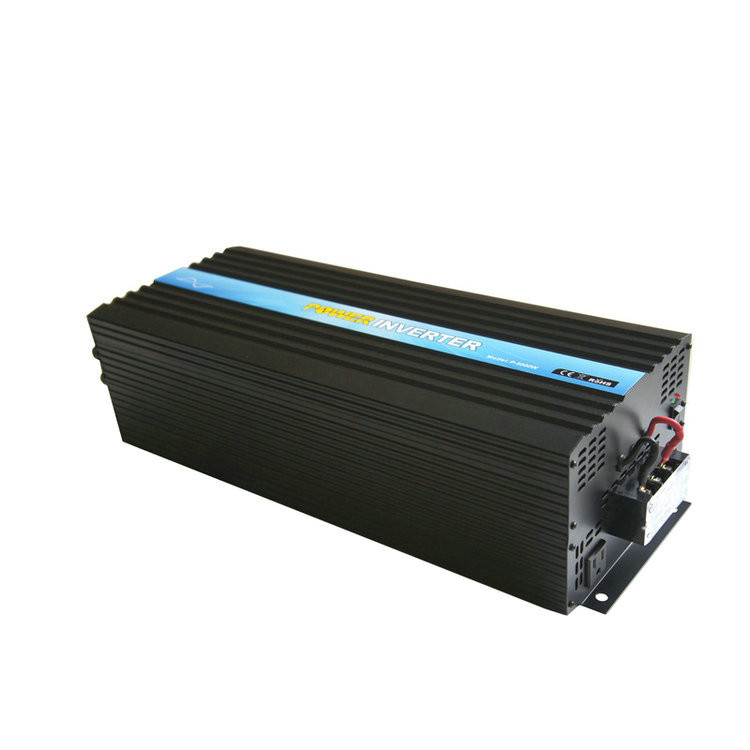

P-5000 5000 watt 12 volt dc to 230 volt ac high frequency pure sine wave Inverter with 2 AC Outlets full protection

Product descriptions

· Passpower provides high quality inverters. This heavy duty inverter provides 5000W continuous power and 10,000W peak power,featuring 2xAC outlets and cables.

· Wide Applications: The inverters can be applied to RV,Truck,Car and Solar System

· Isolated Input and Output Design,Big and Durable aluminum alloy housing provides advanced protection from drops and bumps.Intelligent cooling fan helps reduce heat and prevents shortages.

· Soft Start Tech and Fully Safety Protections:Over voltage,Low voltage,Overload,Short circuit,Over heat,polarity reverse protection(fuse) and Soft start tech,Auto-restart function

· Warranty :12 Months provided by passpower

Product features

1. Pure sine wave output waveform,

2. Soft-start function,

3.  Strong adaptability and stability,

4.  Safe and reliable with built in fuse,

5.  Max efficiency: >90%

6.  Power ON-OFF switch

7.  THD: <3%

8.  Input & output voltage totally isolated

9.  High quality (CE RoHS IP30 SGS GMC approved)

10.  Thermo control cooling fan

11.  Two-color indicators display power and fault status

12. Full power:The working power of 5000w inverters is enough 5000w.

13. Saving-energy

14. Built-in high speed cooling fan

15.Outside aluminum alloy shell ,good to therming dissipine to esure the woking life more long than others

16. Protection functions

Specifications for  P5000-12v-230v

continuous power: 5000W

Surge power:   10000W(wihin 5 millisecond)

DC input voltage :   12V

AC output voltage:   230VAC±10%

No-load current:    <2.5A(DC13V)

AC Output frequency:    50HZ±1%/60HZ±1%

AC Output wavaform:    Pure sine wave

Waveform distortion:    THD<3%(Linear load)

Full load efficiency:    >86%(DC13V)

DC input voltage range:   11V~15.5V

Low voltage alarm:    11±0.3V

Low voltage shutout:    10.5±0.3V

Over voltage protection:    15.5±0.3V

Low volatge recovery:    12.4±0.1V

Over voltage recovery  :  15.4±0.1V

Over-load protection:    112%~114%

Protective functions

Low voltage: LED red light turn on,buzzer warning, automatic recovery

Over voltage: LED red light turn on ,automatic recovery

Over-load:  LED red light on,machine locked, need to be rebooted

Over temperature: LED red light turn on,buzzer warning, automatic recovery

Short circuit(within 2 seconds) :automatic recovery

Input reverse connection : Fuse burn-out

Work temperature:     -4°F to 122°F (-20°C to 50°C)

Storage temperature:    -4°F to 158°F ( –30°C to 70°C )

Humidity    20%~90%RH without condensation

work altitude    Within 1200 meter

Size:   21.46” x 7.84” x 5.75 inch (545*199*146mm)

Net weight  21.82lbs (12.6kg/pc)

Package size: 26.19” x 11.42” x 9.85 inch    665*290*250mm(1PC)

Gross weight  21.82lbs  (16.00kg/pc)

Wide Applications:

The pure sine wave inverters 5000 watt 12volt 230volt can be applied to RV,Truck,Car and Solar System
