Product descriptions
1. 1000W continuous 2000W peak true pure sine wave solar power inverter, as good as grid power, power backup for home power supply.
2. Transfer 12VDC to 220VAC, 50HZ/60Hz frequency. Intelligent temperature control cooling fan. Earth connection for both PCB board and output.
3.High quality true copper inductance, filter the wave form, ensure the true pure sine wave AC output, safeguard your equipment. All big imported mosfets with strong driving capacity.
4. The PCB thickness is 2.00mm, allow the stronger current floating on the circuit, increase the load capacity.
5. High frequency transformer to transfer DC to AC, ensure the stable and full AC output
6. Free standard battery cables and spare fuse for replacement
7. QUARANTEE:One-year warranty and life-time customer service.
Product features
1. Pure sine wave output waveform,
2. Soft-start function,
3. Strong adaptability and stability,
4. Safe and reliable with built in fuse,
5. Max efficiency: >90%
6. Power ON-OFF switch
7. THD: <3%
8. Input & output voltage totally isolated
9. High quality (CE RoHS IP30 SGS GMC approved)

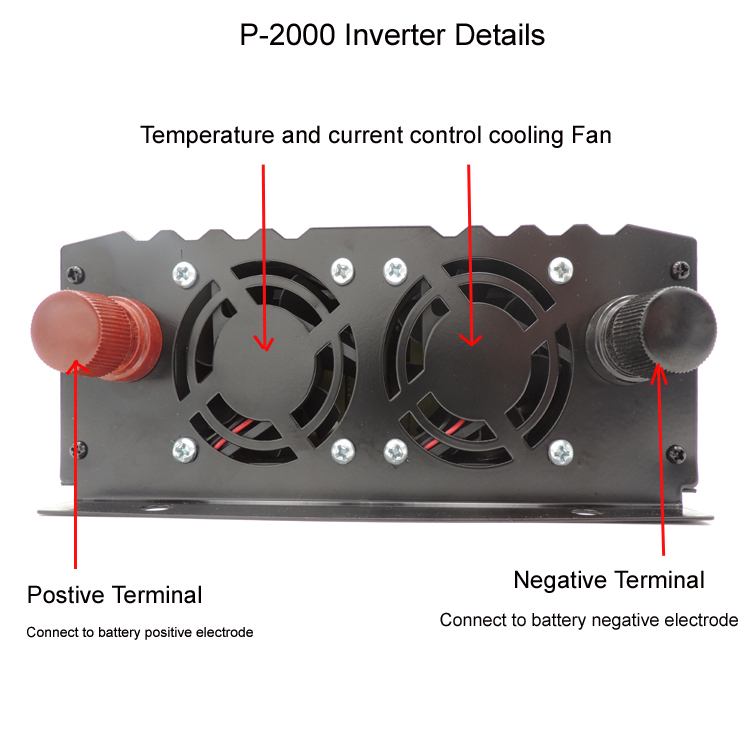

10. Thermo control cooling fan
11. Two-color indicators display power and fault status
12. Full power:The working power of 5000w inverters is enough 5000w.
13. Saving-energy
14. Built-in high speed cooling fan
15.Outside aluminum alloy shell ,good to therming dissipine to esure the woking life more long than others
16. Protection functions
Specifications for P1000-12v-220v
continuous power: 1000W
Surge power: 2000W(wihin 5 millisecond)
DC input voltage : 12V
AC output voltage: 220VAC±5%
No-load current: ＜1.05A(DC13V)
AC Output frequency: 50HZ±1%/60HZ±1%
AC Output wavaform: Pure sine wave
Waveform distortion: THD<3%(Linear load)
Full load efficiency: >86%(DC13V)
DC input voltage range: 10.6V～15.3V
Low voltage alarm: 10.5±0.3V
Low voltage shutout: 9.5±0.2V
Over voltage protection: 15.5±0.2V
Low volatge recovery: 12±0.2V
Over voltage recovery : 15.4±0.2V
Over-load protection: 120%～130%
Protective functions
Low voltage: LED red light turn on,buzzer warning, automatic recovery
Over voltage: LED red light turn on ,automatic recovery
Over-load: LED red light on,machine locked, need to be rebooted
Over temperature: LED red light turn on,buzzer warning, automatic recovery
Short circuit(within 2 seconds) :automatic recovery
Input reverse connection : Fuse burn-out
Work temperature: -4°F to 122°F (-20°C to 50°C)
Storage temperature: -4°F to 158°F ( –30°C to 70°C )
Humidity 20%~90%RH without condensation
work altitude Within 1200 meter
Size: 12.21” x 5.47” x 2.88 inch (310*139*73mm) /1PC
Net weight 5.73lbs (2.6kg/pc)
Package size: 14.96” x 7.68” x6.10 inch (380*195*155mm)/1PC
Gross weight 7.71lbs (3.5kg/pc)
Wide Applications:
The pure sine wave inverters 1000 watt 12volt 220volt can be applied to RV,Truck,Car and Solar System
